Medium Sized Solar Street Light

A medium - sized solar street light is a well - designed lighting solution that combines efficient solar energy harvesting with effective illumination.

The solar panel of a medium - sized solar street light is larger and more powerful than that of a small - sized one. It usually consists of multiple photovoltaic (PV) cells. These PV cells are often made of high - quality materials such as monocrystalline or polycrystalline silicon. Monocrystalline silicon solar panels, for instance, have a higher conversion efficiency, typically ranging from 17% to 22%. The size of the solar panel can vary, but generally, it has an area of around 0.5 - 1.5 square meters. This allows it to capture a significant amount of sunlight during the day and convert it into electrical energy. The power output of the solar panel can be in the range of 30 - 100 watts, depending on its size and efficiency.

The LED lighting unit is the heart of the illumination process. Medium - sized solar street lights are equipped with high - power LEDs. These LEDs offer excellent luminosity and energy - efficiency. The lumen output of the LED unit can range from 1000 to 3000 lumens. The color temperature can be adjusted according to different requirements. For example, a warm - white color temperature of around 3000K provides a cozy and pleasant light, which is suitable for residential areas or parks. A cooler - white color temperature of around 5000 - 6000K offers a brighter and more vivid light, ideal for areas that need high - visibility lighting such as industrial zones or busy intersections.

The battery system is responsible for storing the energy generated by the solar panel. In medium - sized solar street lights, lithium - ion batteries are commonly used due to their high energy density and long - life cycle. The battery capacity usually ranges from 12 - 36 volts and 10 - 50 amp - hours. This allows the street light to store enough energy to operate for a considerable number of hours during the night. The battery is well - protected against overcharging and over - discharging by an intelligent control system to ensure its longevity and safe operation.

The controller acts as the brain of the medium - sized solar street light. It manages the charging process of the battery from the solar panel during the day. It monitors the voltage and current from the solar panel and adjusts the charging rate accordingly to prevent overcharging. At night, it controls the power supply to the LED lighting unit. It can also have advanced features such as dimming control. For example, the controller can adjust the brightness of the street light according to the ambient light conditions or the time of night. This not only saves energy but also provides more flexible lighting options.

As the sun sets and the light intensity drops below a certain threshold (detected by a light sensor), the controller activates the LED lighting unit. The battery supplies power to the LEDs, and the controller converts the DC power to the appropriate voltage and current required by the LEDs to produce light. The light remains on until the battery's energy is depleted or until the light sensor detects sufficient daylight to initiate a new charging cycle.

Medium - sized solar street lights utilize solar energy, a clean and renewable energy source. By doing so, they significantly reduce the reliance on traditional grid - based electricity, which is often generated from non - renewable sources such as coal or natural gas. This helps in reducing carbon emissions and has a positive impact on the environment. Additionally, the energy - efficient LEDs consume less power compared to traditional lighting sources like high - pressure sodium lamps, further enhancing their energy - saving capabilities.

Although the initial investment in a medium - sized solar street light may be higher than that of a traditional street light, it offers long - term cost savings. There are no electricity bills associated with solar street lights as they generate their own power. The maintenance costs are also relatively low due to the long - life components such as the LEDs and lithium - ion batteries. Over time, the savings on energy and maintenance can offset the initial installation cost.

These street lights can be installed in a wide range of locations. They are especially useful in areas where it is difficult or expensive to connect to the power grid, such as in remote areas, along rural roads, or in new - developed industrial parks. The installation process is relatively straightforward. It mainly involves mounting the solar panel in a sunny location, installing the light pole, and connecting the various components together. There is no need for complex underground cable - laying, which simplifies the installation process and reduces installation time and cost.

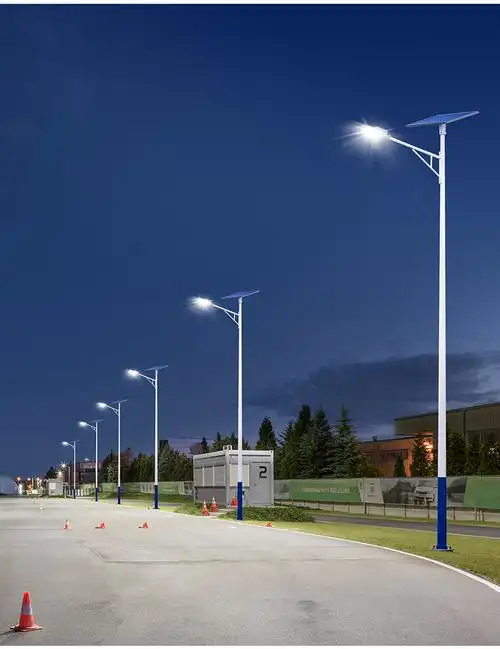

In urban and suburban areas, medium - sized solar street lights are used for street lighting on secondary roads, in residential neighborhoods, and in commercial areas such as shopping centers' parking lots. They provide adequate illumination for pedestrians and vehicles, enhancing safety and security during the night.

These street lights are ideal for lighting up industrial zones and logistics parks. Their high - luminosity LEDs can provide bright and clear light for large areas, facilitating the operation of heavy machinery, loading and unloading activities, and the movement of vehicles during night - shift operations.

In educational institutions such as schools and universities, medium - sized solar street lights can be used to light up campus paths, sports fields, and outdoor recreational areas. In parks and gardens, they enhance the aesthetic and functional aspects of the environment, providing a well - lit space for visitors to enjoy during the evening hours.
