Halide Metal Lamp
A metal halide lamp is a type of high - intensity discharge (HID) lamp. It is designed to produce a bright and efficient light output, making it suitable for a wide range of applications such as stadium lighting, industrial illumination, and large - scale commercial lighting.

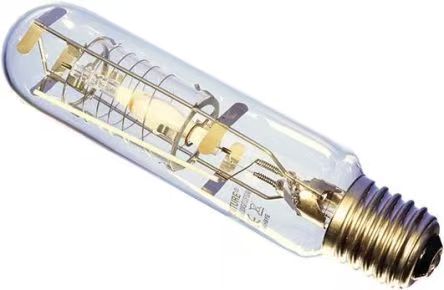

The lamp consists of several key components. The outer envelope is usually made of quartz or hard glass. This outer shell provides protection and insulation for the internal components. Inside the outer envelope, there is an arc tube. The arc tube is the heart of the lamp where the light - producing process takes place. It is typically a small, sealed tube filled with a mixture of mercury, noble gases (such as argon or xenon), and metal halide salts. The electrodes are located at each end of the arc tube. These electrodes are made of refractory materials like tungsten, which can withstand the high temperatures and chemical reactions that occur during operation.
When the lamp is turned on, a high - voltage pulse is initially applied across the electrodes to ionize the noble gas in the arc tube. This creates a conductive path, allowing an electric current to flow through the arc tube. As the current passes through, the heat generated causes the mercury to vaporize and ionize.
Luminous Efficacy: Metal halide lamps have relatively high luminous efficacy. They can produce a significant amount of light output for the power they consume. For example, a typical 1000 - watt metal halide lamp can have a luminous flux of around 80,000 - 100,000 lumens. This makes them energy - efficient for applications where a large amount of light is needed, such as in stadiums, large industrial areas, and outdoor lighting.
Brightness and Intensity: Metal halide lamps are known for their high - intensity light output. They can produce a very bright light, making them suitable for illuminating large areas or objects from a distance. The beam angle can vary depending on the design of the lamp and the reflector used. Some lamps are designed to have a narrow beam for spotlighting applications, while others have a wider beam for floodlighting.
Outdoor Lighting: Metal halide lamps are widely used for street lighting, especially in areas where a high - intensity light is needed to cover a large area. They are also used for illuminating parking lots, sports fields, and building exteriors. In stadiums, for example, the bright and far - reaching light of metal halide lamps ensures that the playing field is well - lit for players and spectators alike.
Indoor Sports Facilities: For indoor sports such as basketball, volleyball, and badminton, metal halide lamps can provide the appropriate lighting conditions. They ensure that the playing area is well - illuminated, allowing players to see the ball and each other clearly, and also provide good visibility for spectators and for any video recordings of the games.
High - intensity Light: As mentioned earlier, they can produce a very bright light, which is useful for illuminating large spaces.
Good Color Rendering: The ability to accurately display colors makes them suitable for applications where color fidelity is important.
Energy - Efficiency: Compared to some other traditional lighting sources like incandescent bulbs, metal halide lamps are more energy - efficient, providing more light per watt of power consumed.
