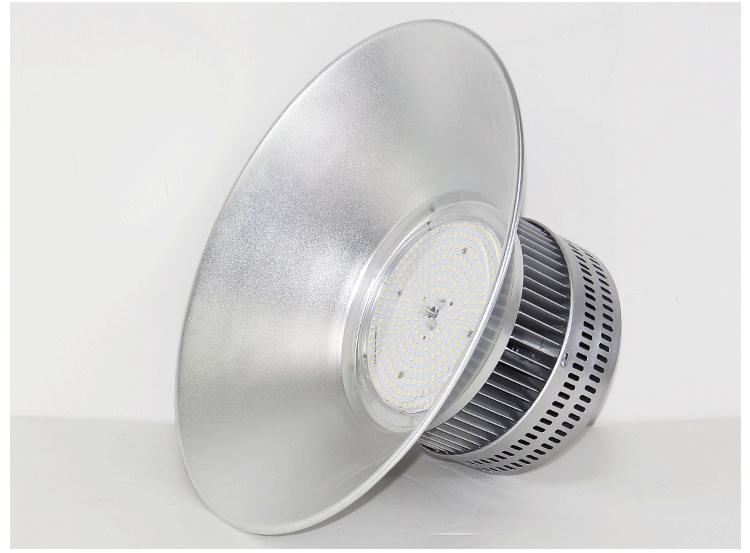

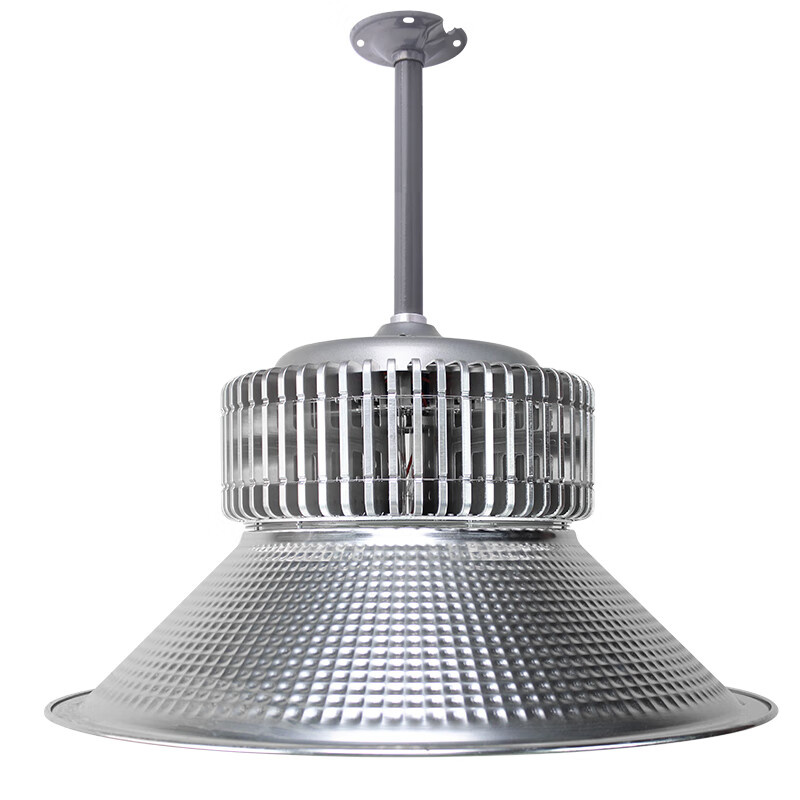

Hanging Chain Industrial And Mining Lamp

The housing of a hanging chain industrial and mining lamp is crafted from durable materials to withstand the harsh conditions of such environments. Commonly, it's made of high - strength aluminum alloy or stainless steel. Aluminum alloy offers good strength - to - weight ratio and excellent heat - dissipation properties, while stainless steel provides superior corrosion resistance, especially in the presence of chemicals, humidity, and corrosive gases often found in industrial and mining sites.

The housing is designed to be sealed to prevent the ingress of dust, water, and other contaminants. High - quality gaskets, usually made of rubber or silicone, are used to ensure a tight seal around the edges and openings. This sealing is crucial for protecting the internal components and maintaining the lamp's performance, especially in areas where there might be a risk of explosion due to the presence of flammable substances.

The light source in these lamps can vary. However, LED (Light - Emitting Diode) technology is increasingly preferred due to its numerous advantages. The LED module consists of multiple high - power LEDs that are carefully arranged on a circuit board. LEDs are known for their energy - efficiency, long lifespan, and low - heat generation. The number and layout of the LEDs are designed to achieve the desired light output and distribution pattern.

To optimize the light output and direction, the lamp is equipped with optical components. The lens, often made of toughened glass or high - grade impact - resistant plastic, serves to protect the light source from physical damage and to shape and direct the light. Some lenses are designed to provide a wide - angle illumination to cover a large area beneath the lamp, while others can focus the light for specific tasks or longer - distance illumination. A reflector, usually made of a highly reflective material like aluminum, may also be present inside the housing to enhance the light - gathering and - directing capabilities of the lamp.

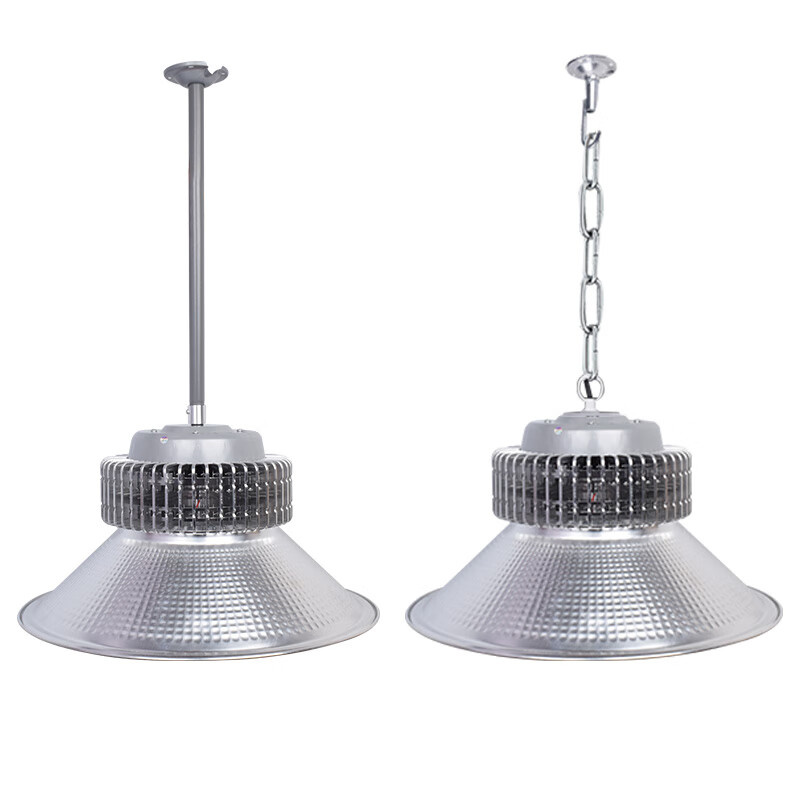

The hanging chain is a prominent feature of this type of lamp. It's typically made of a strong and corrosion - resistant metal, such as stainless steel. The chain is designed to support the weight of the lamp and any additional forces due to vibrations or movements in the environment. The links of the chain are carefully constructed to ensure they can bear the load without breaking or deforming.

The suspension mechanism at the top of the lamp allows it to be easily attached to a ceiling hook, beam, or other overhead support structures. It often includes a swivel or pivot point that enables the lamp to rotate or swing slightly, providing flexibility in adjusting the light direction. Some suspension mechanisms also have adjustable height features, allowing the user to lower or raise the lamp according to the specific lighting requirements of the area.

Inside the housing, the electrical components are designed with safety and functionality in mind. For LED - based lamps, a driver circuit is present. The driver's role is to convert the input AC voltage from the power supply into the appropriate DC voltage and current needed for the LEDs to operate correctly. The driver is usually housed in a protected area or compartment within the housing to prevent electrical arcing or sparking that could potentially lead to an explosion in a hazardous environment.

The wiring is carefully insulated and routed to avoid any sharp edges or points that could cause wire abrasion and subsequent electrical faults. Connectors and terminals are designed to be secure and reliable to ensure a stable electrical connection. In lamps with other light sources such as high - pressure sodium lamps or metal halide lamps, additional components like ballasts are included to regulate the voltage and current for proper operation.

When the hanging chain industrial and mining lamp is connected to a power source, the electrical current is directed through the appropriate electrical components. In the case of an LED - based lamp, the AC voltage is first processed by the driver circuit. The driver converts the voltage to the specific DC voltage and current required by the LEDs.

Once the LEDs receive the correct electrical energy, they emit light through the process of electroluminescence. The light then passes through the lens and is directed by the reflector (if present) to illuminate the area below the lamp. The ability of the lamp to swing or rotate via the suspension mechanism allows for adjustment of the light direction to target specific work areas, equipment, or objects on the floor or other surfaces.

The hanging chain design provides a high degree of flexibility in positioning the lamp. It can be easily adjusted in height and direction, allowing users to direct the light precisely where it's needed. This is especially beneficial in industrial and mining settings where the work area or equipment layout may change, or different lighting angles are required for various tasks such as inspections, maintenance, or production operations.

By suspending from the ceiling, these lamps don't occupy valuable floor space. This is a significant advantage in areas where floor space is needed for equipment, storage, or movement of personnel and materials. The use of chains also allows for a more even distribution of light over a larger area, as the lamp can be positioned to cover a wide range of the workspace.

Due to their elevated position, hanging chain lamps can provide better illumination coverage compared to some other types of lamps. They can light up a larger area beneath them, reducing the number of lamps needed to achieve sufficient lighting in a given space. This is particularly useful in large - scale industrial halls, mineshafts, or storage areas.

In factories, manufacturing plants, and large - scale industrial facilities, hanging chain industrial and mining lamps are used to illuminate work areas, production lines, and assembly stations. Their flexible positioning allows for customization of the lighting to meet the specific requirements of different tasks and machinery. They are also useful for lighting up storage areas, ensuring clear visibility for inventory management and material handling.

In underground and surface mining, these lamps are used to light up tunnels, shafts, and work areas. The ability to adjust the height and direction of the light is valuable in the ever - changing and often - cramped mining environment. They can be used to illuminate mining equipment, conveyor belts, and areas where miners are working or conducting inspections.

In warehouses, hanging chain lamps provide efficient overhead lighting. They can be adjusted to provide even illumination across aisles and storage racks, making it easier to identify products, read labels, and perform inventory checks. The space - saving design also allows for more efficient use of the warehouse floor for storage and forklift operations.
